CuattroDR HD 1417 Wireless

CuattroDR 1417V Wireless

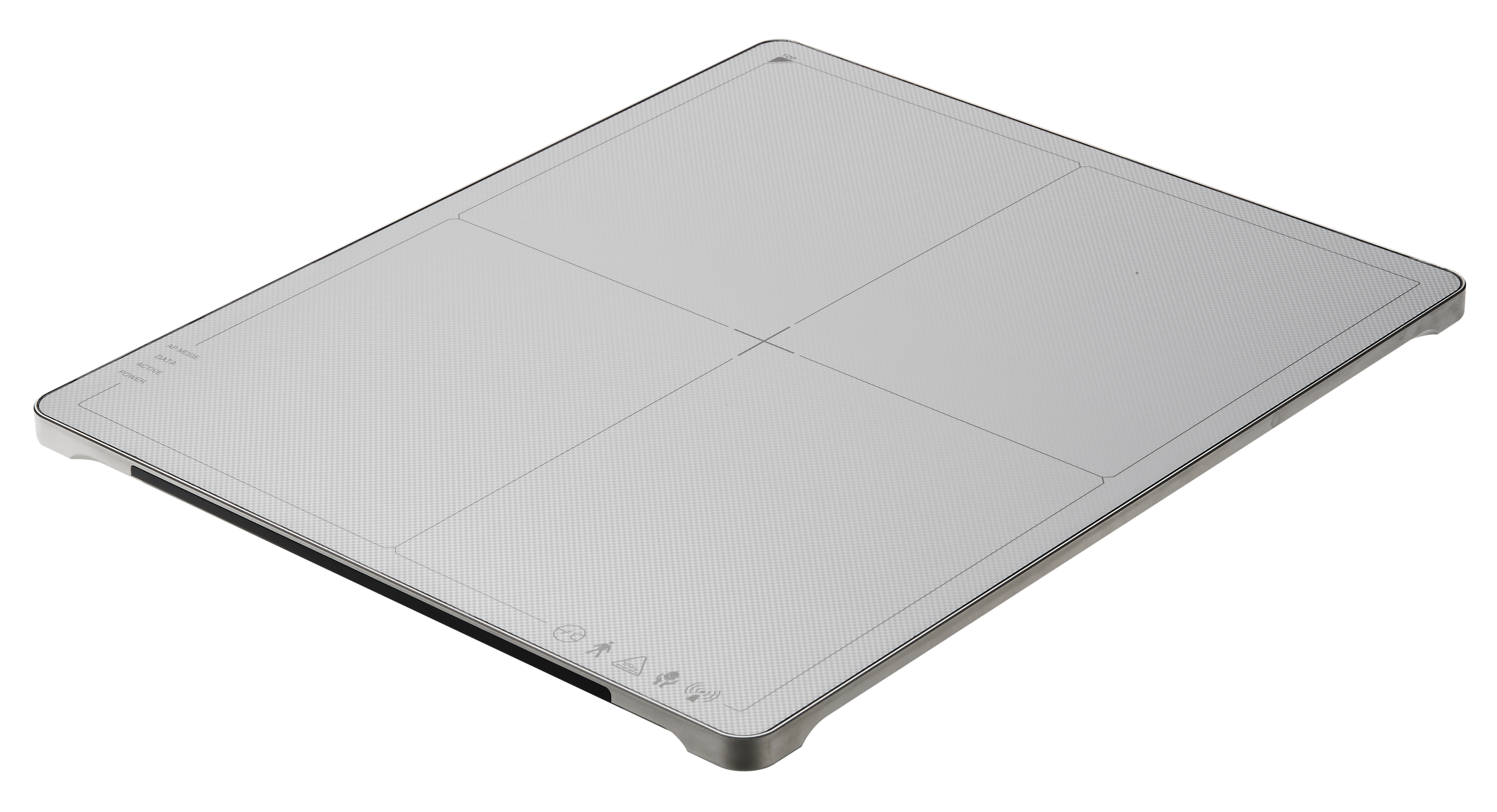

CuattroDR™ Digital Radiography 14 x 17 Wireless Detector (Gen V)

Product Details

Automatic Exposure Detection (AED) and Auto Synchronization Modes

Simple installation in
minutes, without the need to "synchronize" or "re-wire" generators and mechanics.

Completely wireless operation with the fastest data transfer rates and working distances over 100’

Convenient Usability

Easy upgrade: same size as a film or CR cassette (ISO 4090)

Slim lightweight design

15 hours with two standard battery packs

3 hour charge time in included detector slot cradle

IP67 Dust and Water Resistant

Fast Speed

2.7 second image preview

5 sec to final processed image

Applications

The wireless form factor makes patients and users safer while allowing for
a portable workflow.

Three Ways to Charge

Power your CuattroDR HD 1417V in the way that fits your needs. Choose from tethering, battery power, or included slot charger

Model Name	CuattroDR 1417V
Scintillator	CsI:Tl
Pixel Pitch	140 μm x 140 μm
Pixel Matrix	2560 x 3072 pixels
Image Acquisition Time	2.5 sec
Outer Dimensions	38.4 x 46.0 x 1.5 cm
Weight	2.95 kg/6.50 lb (1 battery) or 3.15 kg/6.94 lb (2 batteries)

Technology	a-Si TFT w/PIN Diode
Spatial Resolution	3.5 lp/mm
Image Size	14 x 17 inches (35 x 43cm)
Recommended Cycle Time	5 s
Data Interface	Gigabit Ethernet / WiFi (802.11 a/b/g/n): 2.4/5.0 GHz
X-ray Generator Interface	DR Trigger Mode / AED Mode
X-ray Voltage Range	40 - 150 kVp
Operating Environment	15℃ to 35℃ 30 % to 85 % RH(non-condensing)
Power Consumption

* Specifications are subject to change witdout prior notice.

Sensor

Model Name	CuattroDR 1417V
Scintillator	CsI:Tl
Pixel Pitch	140 μm x 140 μm
Pixel Matrix	2560 x 3072 pixels
Image Acquisition Time	2.5 sec
Outer Dimensions	38.4 x 46.0 x 1.5 cm
Weight	2.95 kg/6.50 lb (1 battery) or 3.15 kg/6.94 lb (2 batteries)

Other

Technology	a-Si TFT w/PIN Diode
Spatial Resolution	3.5 lp/mm
Image Size	14 x 17 inches (35 x 43cm)
Recommended Cycle Time	5 s
Data Interface	Gigabit Ethernet / WiFi (802.11 a/b/g/n): 2.4/5.0 GHz
X-ray Generator Interface	DR Trigger Mode / AED Mode
X-ray Voltage Range	40 - 150 kVp
Operating Environment	15℃ to 35℃ 30 % to 85 % RH(non-condensing)
Power Consumption

* Specifications are subject to change witdout prior notice.

CuattroDR offers the simple, beautiful, modern experience that healthcare providers and patients deserve, in an easy to use, easy to deploy form factor. Each CuattroDR configuration is designed to be simple, flexible, and elegant, while providing the best value in total cost of ownership over many years. Whether the need is to upgrade a busy orthopedic suite, or an urgent care imaging suite, a CuattroDR configuration is available, quickly and reliably. CuattroDR is better and affordable... without compromise or worrisome down-time.
